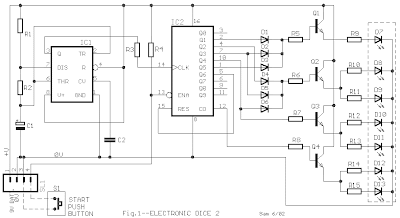

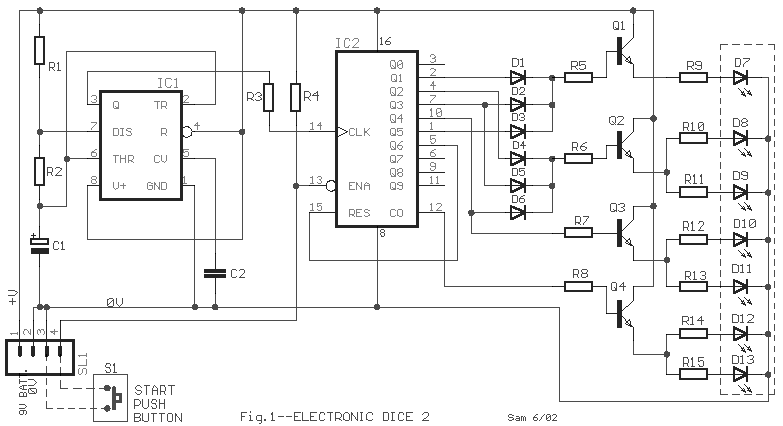

MALZEMELER
R1-2=2K2
C1=22uF 25V
IC2=4017B
R3=10K
C2=10nF 100V MKT
Q1….4=BC550
R4=100K
D1…….6=1N4148
S1=Normal Open Push switch
R5…..8=8K2
D7…….13=Red Led 5mm SL1=4pin connector 2.54mm step
R9…..5=1K
IC1=NE555 or LM555
Pil:9V veya 12Volt
